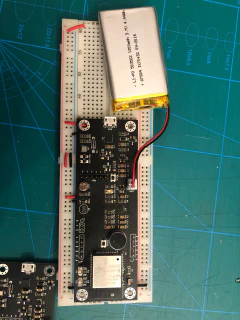

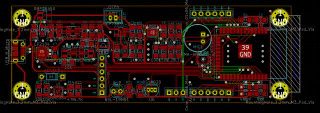

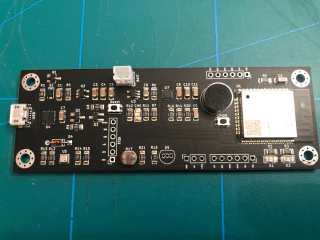

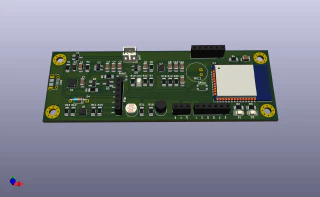

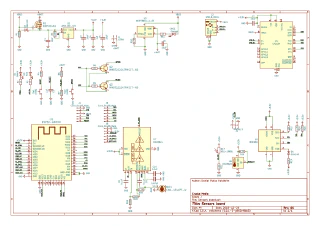

Todo
- Clean up main.cpp
- Segment out setup for sensory
- MQTT
- [-] Setup MQTT with new auth (token) and topics
- Failed to connect with JWT-token. The token is too long to be sent via current library
- Check other libraries
- Check Espressif MQTT Protocol
- Check other libraries
- Failed to connect with JWT-token. The token is too long to be sent via current library
- Setup MQTT to subscribe to updates from server
- Add posibility to override MQTT settings
- Setup MQTT Auto discovery for Home assistant
- [-] Setup MQTT with new auth (token) and topics
- OTA
- Remove hardcoded token
- Use JWT token to authenticate with backend
- Get https working on ESP
- Pull CA-cert from letsencrypt via http
- OTA on demand (MQTT or BLE)
- Ability to opt-out of auto updates
- Sensors
- Clean up MQTT JSON types - some are strings that should be int’s.
- Calibrate ADC
- BSEC
- Setup first time calibration sequence
- Check updates for Algo library
- Inject calibration variables to BSEC from preferences
- Store IAQ state to preferences
- Pressure / altitude
- Subscribe or fetch pressure by sea-level for altitude sensor
- Audio
- Get DB-like values
- Battery
- Better charing values
- Calculate 0-100% again after changes to code for sampling
- Photoresistor
- Calculate 0-100% again after changes to code for sampling
- WiFi
- Remove hard-coded Wifi setup
- Handle no SSID / SSID Password for onboarding via bluetooth
- BLE / Bluetooth
- Check out if current BLE setup can be used with / as a iBeacon
- Configure pin security to device
- Get RSSI from near Sense devices
- Identify device by sending blink command via ble
- OLED Display
- Setup layout for release
- Air quality
- Audio
- Battery
- Temperature / humidity
- Move debug layout code from main.cpp into display class
- Setup layout for release
- Build
- Setup build in CI with the different options with sensory
- Other
- Fix memory leaks
- Tests
- Write tests
Functionality
Sleeptracking
Softreset via button
Send and recieve IR commands
External temperature sensor
Bluetooth
- Vendor list
- Company identifiers
- ESP Bluetooth collector
- ESP32 MP3 Decoder
- How to Calculate Distance from the RSSI value of the BLE Beacon
- ESPHome Bluetooth proxy
Notes
Interrupts
ADC
IAQ - BSEC
IAQ Accuracy=0 could either mean:
BSEC was just started, and the sensor is stabilizing (this lasts normally 5min in LP mode or 20min in ULP mode), there was a timing violation (i.e. BSEC was called too early or too late), which should be indicated by a warning/error flag by BSEC,
IAQ Accuracy=1 means the background history of BSEC is uncertain. This typically means the gas sensor data was too stable for BSEC to clearly define its references,
IAQ Accuracy=2 means BSEC found a new calibration data and is currently calibrating,
IAQ Accuracy=3 means BSEC calibrated successfully.
JSON
Audio
dB | Example |
---|---|
120dB | Threshold of pain, Thunder |
110dB | Concerts, screaming child |
100dB | Motorcycle, blowdryer |
90dB | Diesel truck, Power mower |
80dB | Loud music, alarm clocks |
70dB | Busy traffic, vacuum cleaner |
60dB | Normal conversation at 1 meter |
50dB | Quiet office, moderate rainfall |
40dB | Quiet library, bird calls |
30dB | Whisper, quiet rual area |
20dB | Rusling leaves, ticking watch |
10dB | Almost quiet, breathing |
Measure with tone generator and find coefficients with Linear Regression Calculator.
For next revision: i2c microphone
Components
MAX9814
The MAX9814 is a low-cost, high-quality microphone amplifier with automatic gain control (AGC) and low-noise microphone bias.
Note
Pin 14, TH: AGC Threshold Control. TH voltage sets gain control threshold. Connect TH to MICBIAS to disable the AGC. To disable AGC we can remove resistor R20 and R19, and solder a bridge between the pads on R19.
CMA-4544PF-W
Electret condenser microphone.
Articles
- Adafruid: Measuring dB with MAX9814
- Arduino Frequency Detection
- Arduino Whistle Detector Switch using Sound Sensor
- ESP32 Voice Streamer
- esp32_SoundRecorder
- Measure Sound/Noise Level in dB with Microphone and Arduino
- PICCOLO: Tiny Arduino music visualizer!
- Sound Level Meter with Arduino IDE, ESP32 and I2S MEMS microphone
Light
Alternative to LDR is a BH1750 chip. This is for next revision?.
Measure EV -> Lux with Sekonic Flashmate and find coefficients with the calculator used to find dB coefficient.
How to use an incident illuminance (LUX or FC) meter
- Mount the Lumidisc accessory
- Set EV mode and ISO 100.
- Measure with the area to be measured parallel to the Lumidisc.
- Determine the illuminance (lux) from the calculation table using the measured EV.
EV Value -> Lux conversion table
EV | Lux | EV | Lux | EV | Lux | EV | Lux |
---|---|---|---|---|---|---|---|
0.0 | 2.5 | 5.0 | 80 | 10.0 | 2600 | 15.0 | 82000 |
0.5 | 3.5 | 5.5 | 110 | 10.5 | 3600 | 15.5 | 120000 |
1.0 | 5.0 | 6.0 | 160 | 11.0 | 5100 | 16.0 | 160000 |
1.5 | 7.1 | 6.5 | 230 | 11.5 | 7200 | 16.5 | 230000 |
2.0 | 10 | 7.0 | 320 | 12.0 | 10000 | 17.0 | 330000 |
2.5 | 14 | 7.5 | 450 | 12.5 | 14000 | 17.5 | 460000 |
3.0 | 20 | 8.0 | 640 | 13.0 | 20000 | 18.0 | 660000 |
3.5 | 28 | 8.5 | 910 | 13.5 | 29000 | 18.5 | 930000 |
4.0 | 40 | 9.0 | 1300 | 14.0 | 41000 | 19.0 | 1300000 |
4.5 | 57 | 9.5 | 1800 | 14.5 | 58000 | 19.5 | 1900000 |
BLE device configuration specification
Name | Type | R/W | Key | UUID | Comment |
---|---|---|---|---|---|
Device name | String | R/W | deviceName | 5759f8cc-69ee-11e9-8a12-1681be663d3e | |
WiFi Mac | String | R | 51ecb1ca-6b85-11e9-a923-1681be663d3e | Read from ESP and register device to Crudus sense backend | |
WiFi SSID | String | R/W | wifi-ssid | 51ecb440-6b85-11e9-a923-1681be663d3e | |
WiFi passwd | String | W | wifi-pwd | 51ecb594-6b85-11e9-a923-1681be663d3e | |
Room | String | R/W | loc-room | 51ecb6ca-6b85-11e9-a923-1681be663d3e | |
Floor | Integer? | R/W | loc-floor | 51ecb7f6-6b85-11e9-a923-1681be663d3e | |
Compound | String | R/W | Loc-comp | 51ecb922-6b85-11e9-a923-1681be663d3e | |
MQTT topic | String | R/W | mqtt-topic | 51ecba4e-6b85-11e9-a923-1681be663d3e | Only if MQTT-host is changed |
MQTT host | String | R/W | mqtt-host | 51ecbf26-6b85-11e9-a923-1681be663d3e | Disables default mqtt host |
MQTT port | Integer | R/W | mqtt-port | 51ecc156-6b85-11e9-a923-1681be663d3e | Only if MQTT-host is changed |
MQTT username | String | R/W | mqtt-user | 51ecc2c8-6b85-11e9-a923-1681be663d3e | Only if MQTT-host is changed |
MQTT password | String | W | mqtt-pwd | 51ecc3fe-6b85-11e9-a923-1681be663d3e | Only if MQTT-host is changed |
Crudus Accounts username | String | W | crudus-user | 51ecc52a-6b85-11e9-a923-1681be663d3e | For setting default MQTT topic and MQTT username |
Crudus Accounts token | String | W | crudus-token | 51ecc6d8-6b85-11e9-a923-1681be663d3e | For OTA downloads and MQTT password / token |
Calibration temperature | String (comma separated) | R/W | cali-temp | 51ecca5c-6b85-11e9-a923-1681be663d3e | For calibrate temperature |
Calibration humidity | String (comma separated) | R/W | cali-hum | 51eccbb0-6b85-11e9-a923-1681be663d3e | For calibrate humidity |
Soft reset | boolean | W | soft-reset | 51eccd18-6b85-11e9-a923-1681be663d3e | For clearing preferences |
MQTT publish Topics
Topic | Payload | Comment |
---|---|---|
MQTT Subscribe Topics
Topic | Payload | Action | Comment |
---|---|---|---|
/sense/ota | Calls OTA for update |
Extensions
CCS811
Alternativ chip: CCS811 (indoor air quality sensor)
